WTS700 7-Parameter Meteorological Integrated Monitoring Station
1. Integrated structure, a single device synchronously collects parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, radiation., reducing the cost of deploying multiple devices; Supports -40℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios
2. Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on masts or tripods with a diameter of 60~75mm
Product description
TS WTS700 Integrated Meteorological Sensor is a professional-grade multi-variable weather monitoring device independently developed by our company. It simultaneously measures seven meteorological parameters, including temperature, humidity, atmospheric pressure, wind direction, wind speed, rainfall, and solar radiation.
With advantages such as high accuracy, fast response, excellent anti-interference performance, and serial port output, it supports direct data acquisition and processing via PC or external instruments, providing reliable and user-friendly operation.
Technical Parameters
|
Parameter |
Measuring range |
Resolution |
Accuracy |
Measuring principle |
|
Air Temperature |
-40℃～+80℃ |
0.1℃ |
±0.2℃ |
Platinum resistance |
|
Air Humidity |
0%～100%Rh |
0.1%Rh |
±2%Rh |
Capacitance |
|
Air pressure |
10～1300hPa |
0.1hPa |
±0.3hPa |
Silicon piezoresistive |
|
wind direction |
0～360° |
1° |
±3° |
Ultrasonic |
|
Wind speed |
0～75m/s |
0.1m/s |
±0.3m/s or 3% |
Ultrasonic |
|
Rainfall |
0～24mm/min |
0.1mm/0.01mm |
±5% |
Optical/Radar |
|
Radiation |
0～2000w/㎡ |
0.1w/㎡ |
≤ 5% |
Silicon Photodetector |
|
UV |
0 ～ 15Level |
1Level |
±1Level |
Photoresistor |
|
Reliability |
Mean time between failures (MTBF), design value 85000h |
Operating voltage |
9V～30VDC |
|
|
Data Protocol |
Support ASCII code and Modbus protocol |
Operating temperature |
-40℃～+80℃ |
|
|
Output |
RS485, RS232, SDI12, 4-20mA, 0-5V optional |
Operating humidity |
0～100%Rh |
|
|
Size |
140mm*140mm*350mm |
Weight |
1.1kg |
|
Product Selection
Model | Temperature | Humidity | Air pressure | Wind speed and direction | Rainfall | Radiation | UV |
WTS200 | ✔ | ||||||
WTS201 | ✔ | ✔ | |||||
WTS300 | ✔ | ✔ | ✔ | ||||
WTS400 | ✔ | ✔ | ✔ | ✔ | |||
WTS500 | ✔ | ✔ | ✔ | ✔ | |||
WTS600 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
WTS700 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
WTS800 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

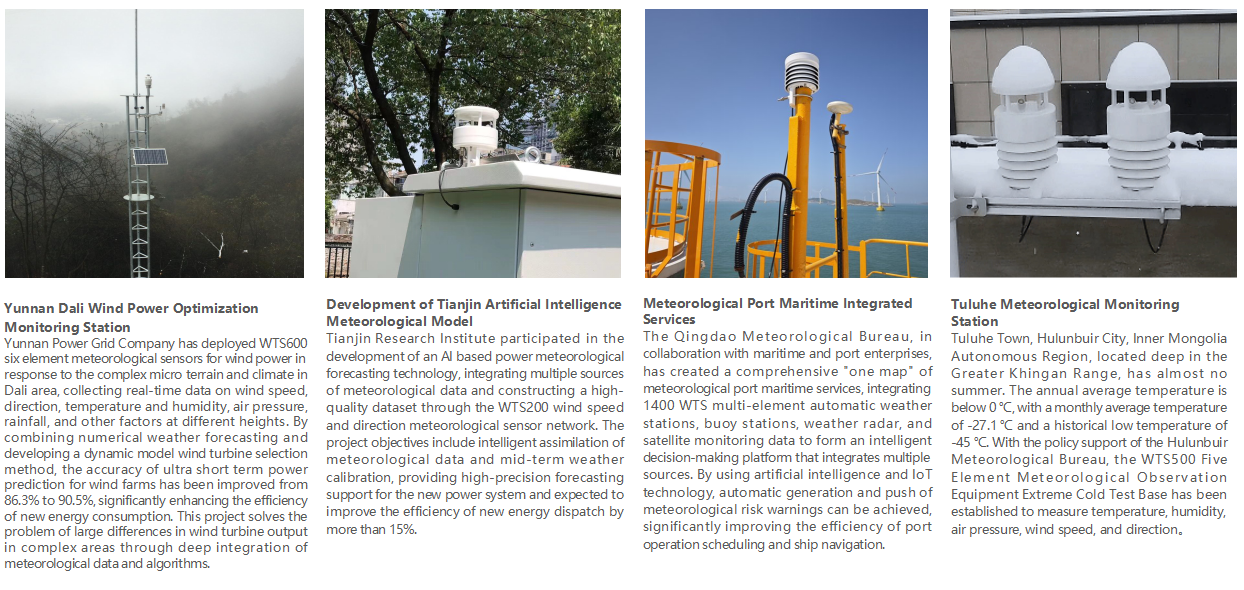

Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
