AVS05 Compact Visibility Sensor
AVS01 visibility sensor offers three measurement ranges: 10 km, 30 km, and 50 km, with an extended maximum range reaching up to 80 kilometers. Boasting high – precision measurement capabilities, it generates detailed measurement reports for rain, snow, and fog conditions. This sensor can be extensively deployed across various transportation – related sectors, including meteorological stations, airports, expressways, waterways, and large – scale vessels.
working temperature：-40℃ ~+ 60℃ working humidity：0~100%
scattering angle coverage：39°~51° front scattering
Product Description

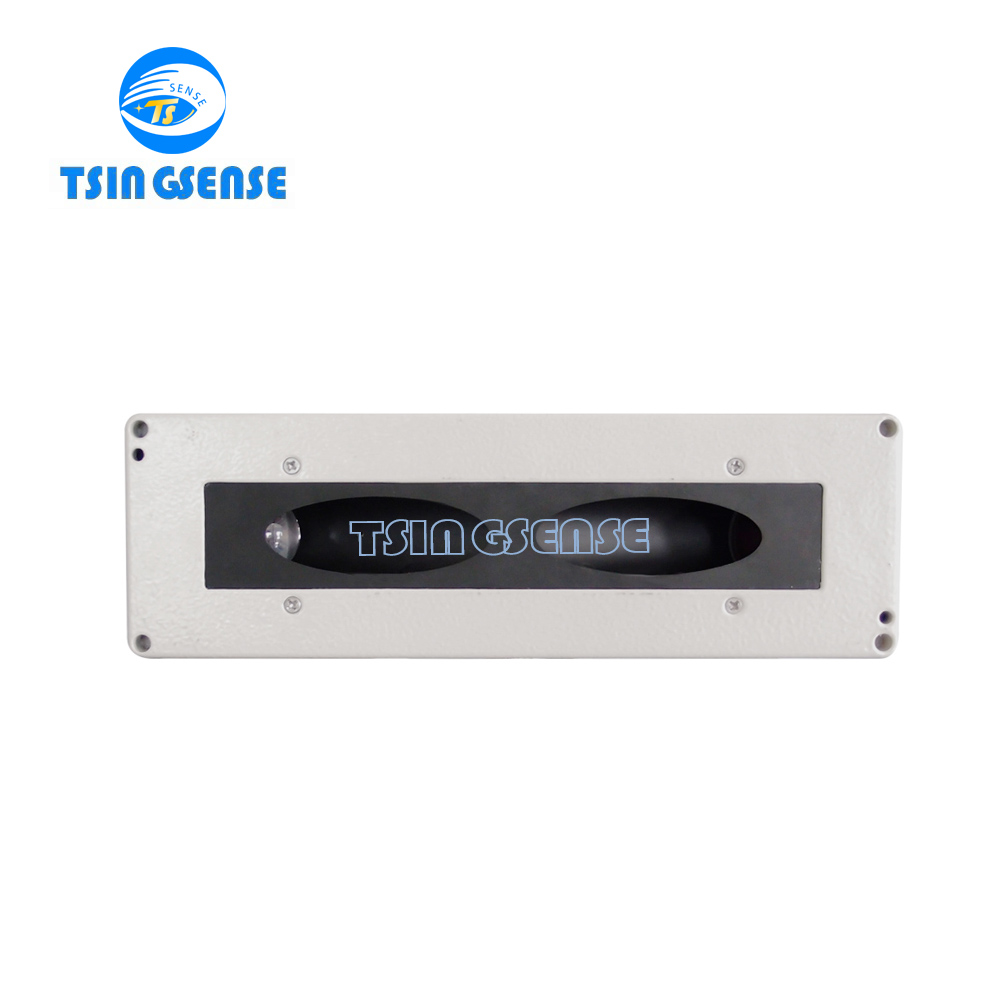

TS AVS05 Micro visibility sensor is a compact visibility measuring instrument based on the principle of aerosol pre-scattering developed by the company. Small size, light weight and easy to move. The device adopts RS485 output and has two communication protocols: Modbus and ASCII. Widely used in smart transportation, meteorological monitoring, maritime affairs , environmental protection, scientific research and other industries.
Features
- Low power consumption, less than 1W
- Maintenance-free design, easy to install
- Small size, light weight, easy to carry
- Output interface is RS485 (RS232 optional)
- IP66 protection level, can adapt to harsh environments in the wild
- With automatic lens contamination detection and compensation, alarm function
Technical parameters
| measurement range | 10m~2km | |
| Measurement parameter | measurement accuracy | ≤500m (error±5%); 500m~2km(error±10%) |
| instrument consistency | ≤±4% | |
| data update interval | 15s~600s optional | |
| Power supply parameter | input power | DC12V (9~24V) |
| power consumption | When normal ( not heating) <1.5W; when heating <3W | |

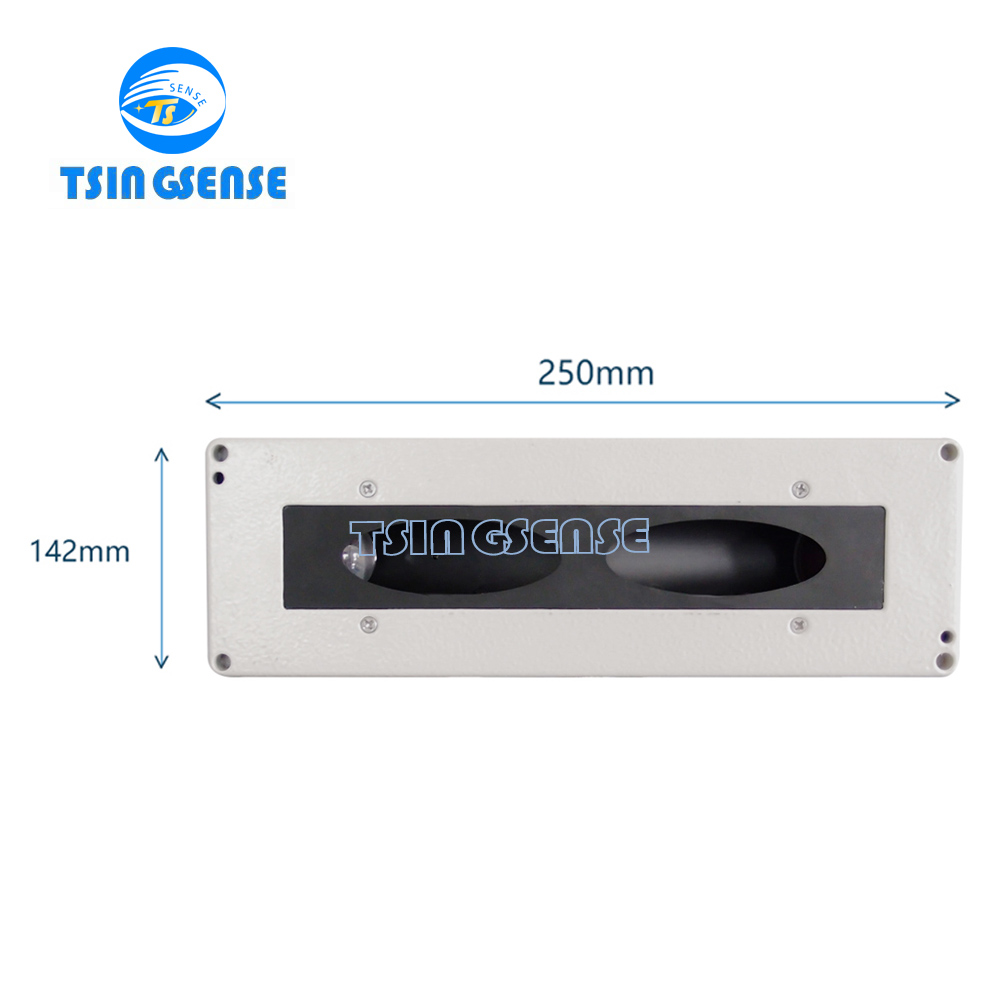

| Mechanical parameters | size(L*W*H) | 250mm × 80mm × 142mm |
| weight | <2kg | |
| material | Anodized, hard aluminum, external surface with paint protection | |
| Environmental parameters | working temperature | -50℃~+80℃ |
| working humidity | 0~100% | |
| Mean time without failure | 1.5 x 50000 hour |
Packing list
sensor a set
certificate/warranty a copy
packing list a copy
Application
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
