Meteorological multi-parameter dust monitoring station MWDS11
Dust particle sensor structure can collect parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, etc. It supports wide temperature measurement of -40℃~+80℃, 0~40m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios.
Product Description

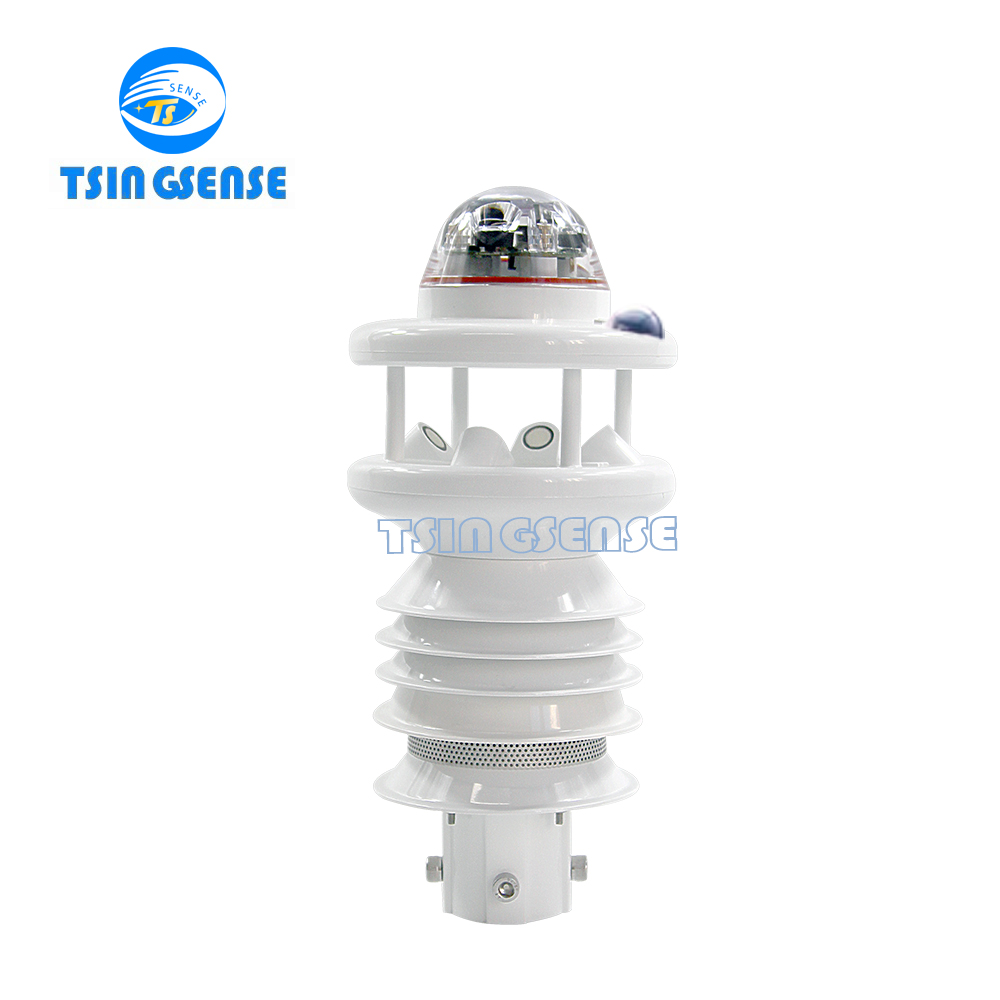

TS MWDS11 integrated dust monitoring sensor is a miniature instrument mainly used in smart cities, smart lamp poles, and smart construction sites to monitor meteorological and environmental factors. The meteorological factors that can be monitored include temperature, humidity, wind speed, wind direction, air pressure, rainfall, Radiation, UV etc., and the environmental factors include PM2.5, PM10, noise, etc.The equipment system is modular in design, and users can flexibly configure it according to their needs. It can integrate solar power supply system, LED display screen and GPRS wireless transmission module, etc.
Features
-
Flexiblely configure monitoring module
-
Standard Modbus protocol
-
Small size, light weight, high precision
-
Integrated design, maintenance-free, easy to install
-
Can expand GPS, electronic compass, GPRS and other functions
Technical Parameters
|
Parameter |
Measuring range |
Resolution |
Accuracy |
Measuring principle |
|
Air Temperature |
-40℃～+60℃ |
0.1℃ |
±0.2℃ |
Platinum resistance |
|
Air Humidity |
0%～100%Rh |
0.1%Rh |
±2%Rh |
Capacitance |
|
Air pressure |
10～1300hPa |
0.1hPa |
±0.3hPa |
Silicon piezoresistive |
|
wind direction |
0～360° |
1° |
±3° |
Ultrasonic |
|
Wind speed |
0～40m/s |
0.1m/s |
±0.3m/s or 3% |
Ultrasonic |
|
Rainfall |
0～24mm/min |
0.1mm/0.01mm |
±5% |
Optical/Radar |
|
Radiation |
0～2000w/㎡ |
0.1w/㎡ |
≤ 5% |
Silicon Photodetector |
|
UV |
0 ～ 15level |
1level |
±1level |
Photoresistor |
|
Noise |
30-130dB |
A weighting (simulating human ears) |
±1.5dB |
Capacitive |
|
PM2.5/10 |
0~1000μg/m3 |
0.3μg/m3 |
±10μg/m3 or15% |
Laser scattering |
|
Reliability |
Mean time between failures (MTBF), design value 85000h |
Operating voltage |
9V～30VDC |
|
|
Data Protocol |
Support ASCII code and Modbus protocol |
Operating temperature |
-40℃～+80℃ |
|
|
Output |
RS485, RS232, SDI12, 4-20mA, 0-5V optional |
Operating humidity |
0～100%Rh |
|
|
Size |

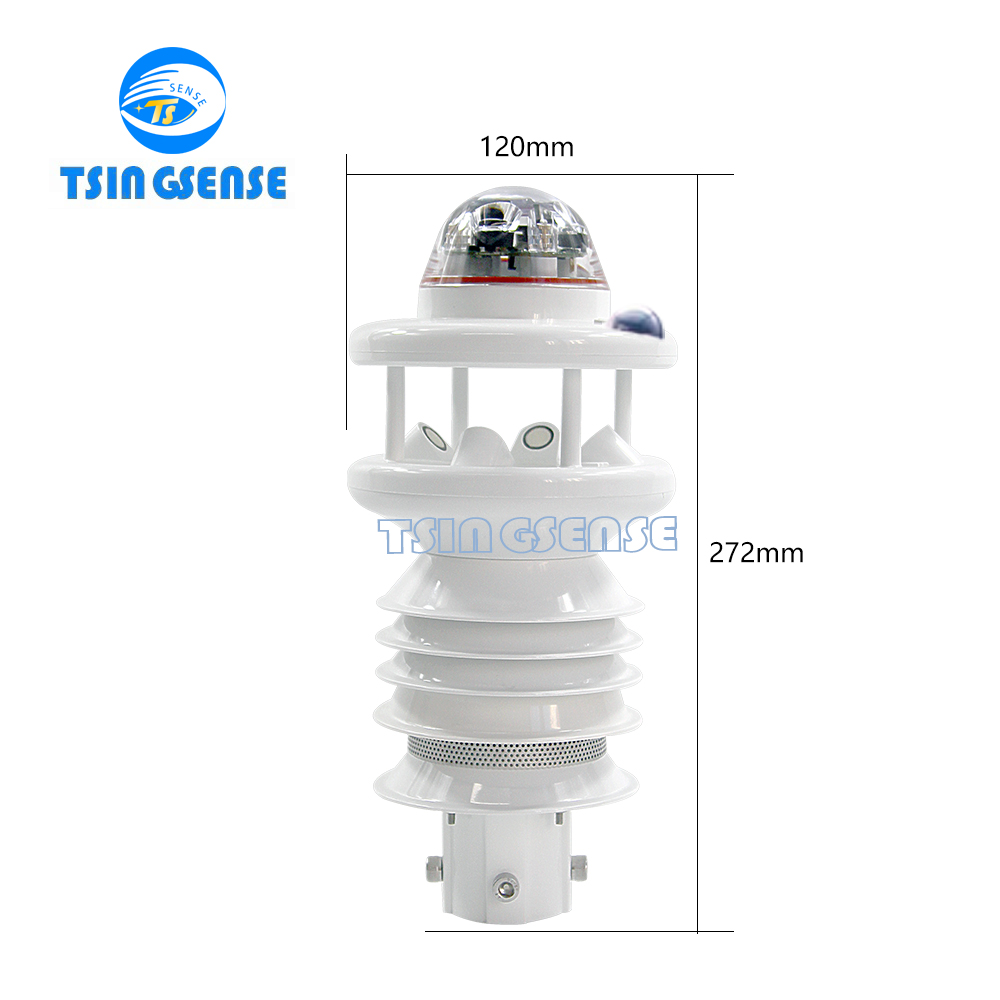

120mm*120mm*272mm |
Weight |
0.7kg |
|
