WTS800 outdoor weather sensors
1. Integrated structure, a single device synchronously collects parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, radiation, UV, etc., reducing the cost of deploying multiple devices; Supports -40℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios
2. Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on masts or tripods with a diameter of 60~75mm
Product description

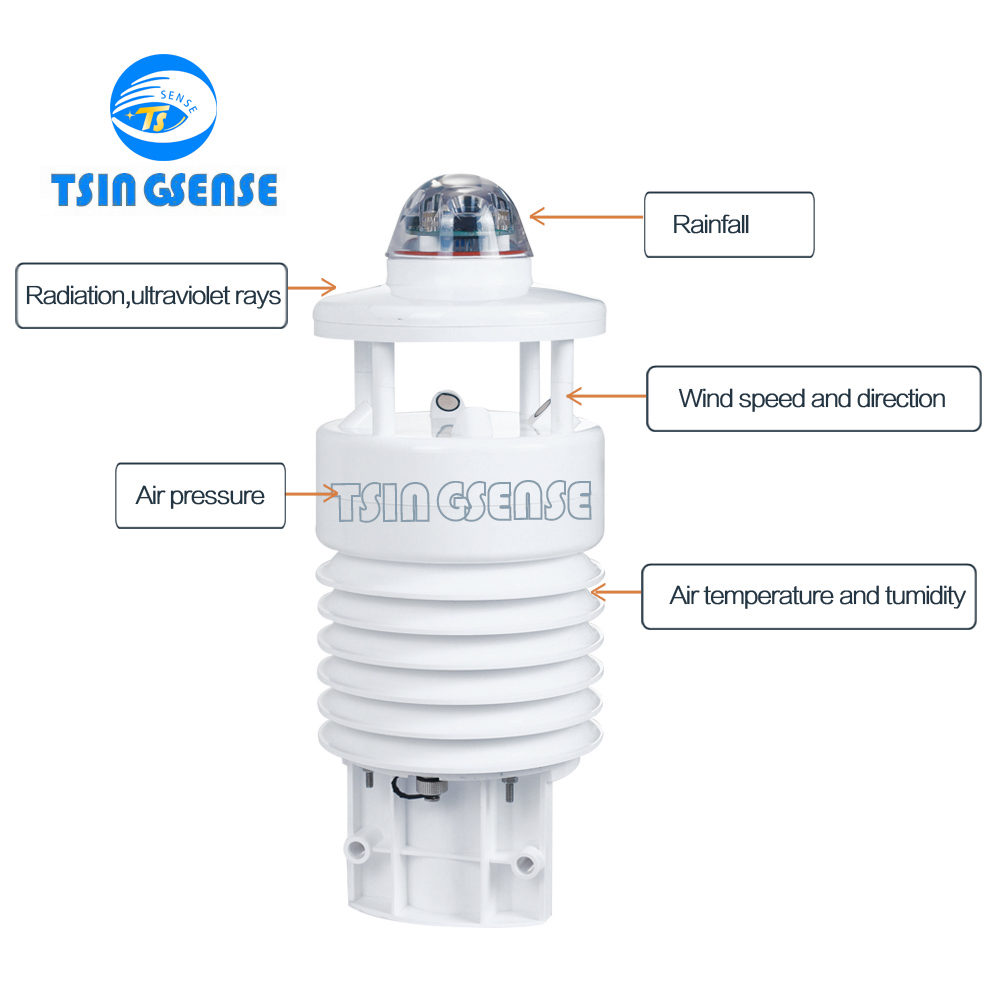

TS WTS800 integrated meteorological sensor is a professional-grade sensor independently developed by our company to measure multiple meteorological elements. It can simultaneously measure eight meteorological elements including temperature, humidity, air pressure, wind direction, wind speed, rainfall, radiation, and UV index. It has the advantages of high accuracy, fast response time, strong anti-interference ability, and serial port output.Users can make measurements directly through the PC or external instruments.
Technical Parameters
|
Parameter |
Measuring range |
Resolution |
Accuracy |
Measuring principle |
|
Air Temperature |
-40℃～+80℃ |
0.1℃ |
±0.2℃ |
Platinum resistance |
|
Air Humidity |
0%～100%Rh |
0.1%Rh |
±2%Rh |
Capacitance |
|
Air pressure |
10～1300hPa |
0.1hPa |
±0.3hPa |
Silicon piezoresistive |
|
wind direction |
0～360° |
1° |
±3° |
Ultrasonic |
|
Wind speed |
0～75m/s |
0.1m/s |
±0.3m/s or 3% |
Ultrasonic |
|
Rainfall |
0～24mm/min |
0.1mm/0.01mm |
±5% |
Optical/Radar |
|
Radiation |
0～2000w/㎡ |
0.1w/㎡ |
≤ 5% |
Silicon Photodetector |
|
UV |
0 ～ 15Level |
1Level |
±1Level |
Photoresistor |
|
Reliability |
Mean time between failures (MTBF), design value 85000h |
Operating voltage |
9V～30VDC |
|
|
Data Protocol |
Support ASCII code and Modbus protocol |
Operating temperature |
-40℃～+80℃ |
|
|
Output |
RS485, RS232, SDI12, 4-20mA, 0-5V optional |
Operating humidity |
0～100%Rh |
|
|

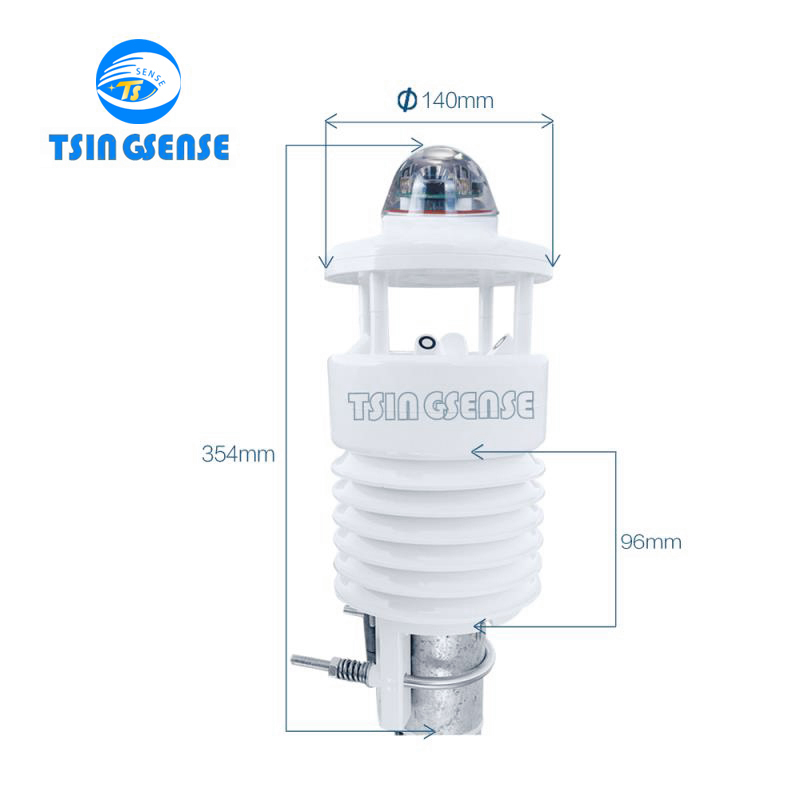

Size |
140mm*140mm*350mm |
Weight |
1.1kg |
|
Product Selection
Model | Temperature | Humidity | Air pressure | Wind speed and direction | Rainfall | Radiation | UV |
WTS200 | ✔ | ||||||
WTS201 | ✔ | ✔ | |||||
WTS300 | ✔ | ✔ | ✔ | ||||
WTS400 | ✔ | ✔ | ✔ | ✔ | |||
WTS500 | ✔ | ✔ | ✔ | ✔ | |||
WTS600 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
WTS700 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
WTS800 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Application Scenarios
