WTS600 Meteorological temperature and humidity wind speed wind direction pressure and rainfall online monitoring
1. Integrated structure, a single device synchronously collects parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, reducing the cost of deploying multiple devices; Supports -40℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios
2. Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on masts or tripods with a diameter of
Product description

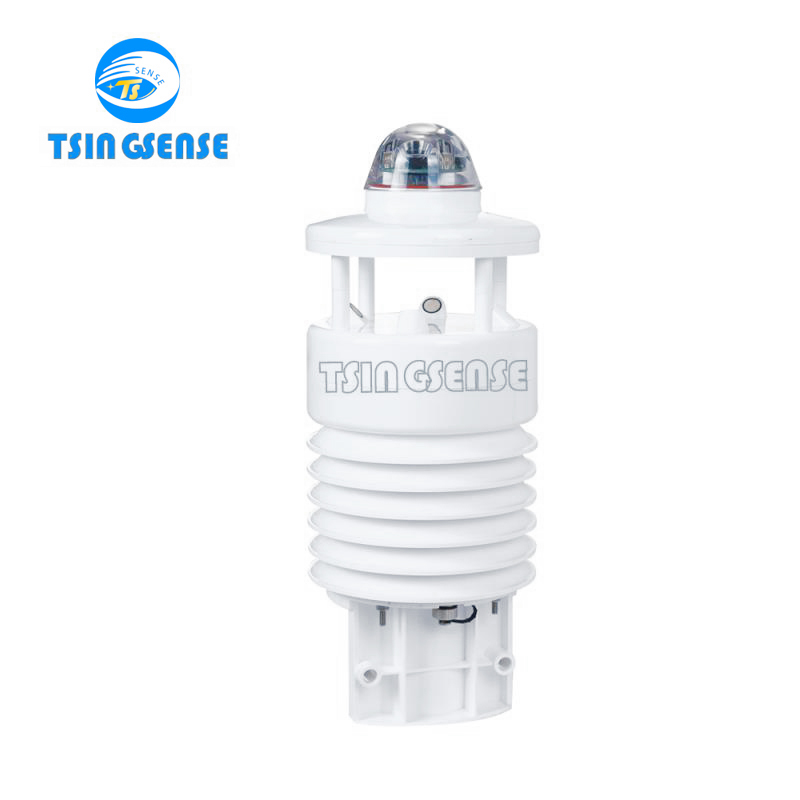

TS WTS600 Integrated Meteorological Sensor is a professional-grade multi-variable weather monitoring device independently developed by our company. It simultaneously measures Six meteorological parameters, including temperature, humidity, atmospheric pressure, wind direction, wind speed, rainfall, and .
With advantages such as high accuracy, fast response, excellent anti-interference performance, and serial port output, it supports direct data acquisition and processing via PC or external instruments, providing reliable and user-friendly operation.
Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
Air Temperature | -40℃～+80℃ | 0.1℃ | ±0.2℃ | Platinum resistance |
Air Humidity | 0%～100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10～1300hPa | 0.1hPa | ±0.3hPa | Silicon piezoresistive |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～75m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
Rainfall | 0～24mm/min | 0.1mm/0.01mm | ±5% | Optical/Radar |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature | -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |
Size | 140mm*140mm*350mm | Weight | 1.1kg | |
Product Selection
Model | Temperature | Humidity | Air pressure | Wind speed and direction | Rainfall | Radiation | UV |
WTS200 | ✔ | ||||||
WTS201 | ✔ | ✔ | |||||
WTS300 | ✔ | ✔ | ✔ | ||||
WTS400 | ✔ | ✔ | ✔ | ✔ | |||
WTS500 | ✔ | ✔ | ✔ | ✔ | |||
WTS600 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
WTS700 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
WTS800 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
